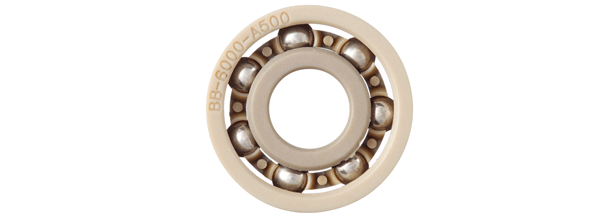

xiros® A500 - for high temperatures

High temperature ball bearing

xiros® ball bearings open new fields of application for plastic bearing technology.

xiros® bearings with ball races made from the high-performance polymer iglide® A500 offer an excellent wear rate in comparison with other high-temperature plastics.

  • Maintenance- and lubrication-free
  • For temperatures up to 302° F
  • Corrosion resistant
  • Non-magnetic and washable
  • Chemical resistant
  • FDA compliant
  • Predictable lifetime
  • Lightweight
  • For 3-20 mm shaft diameter


    • Industries: Medical, chemical, food, pharmaceutical, biotechnology, plant engineering.

    fda ball bearing
    Part No.:
    Balls:
    Part No. Rings Cage Balls Inner Ø
    d1     		Outer Ø
    d2     		Width
    b1     		Max.
    stat.
    axial
    load     		Stat.
    load
    capa
    city     		Dyn.
    load
    capa
    city     		Limit
    speed
    		Weight
            [mm] [mm] [mm] [lbs] [lbs] [lbs] [rpm] [g]
     B623A7E A500 PEEK Stainless steel 3 10 4 9 6.75 9 5000 0.4 Upon request
     B626A7E A500 PEEK Stainless steel 6 19 6 28.13 13.5 18.23 3200 2.3 Upon request
     B608A7E A500 PEEK Stainless steel 8 22 7 49.5 16.2 21.82 2700 3.7 Upon request
     B6000A7E A500 PEEK Stainless steel 10 26 8 85.5 22.95 30.82 2100 6 Upon request
     B6004A7E A500 PEEK Stainless steel 20 42 12 146.25 56.25 78.75 1300 19.7 Upon request
    More about selected part:
    3D-CAD Sample request Experts PDF Quote request Price list myCatalog

    xiros® A500 - maximum corrosion resistance

    plastic bearing

    xiros® A500 plastic ball bearings - in combination with a PEEK cage and glass balls - are often used in environments where high chemical resistance is required and stainless steel components should be avoided entirely.

  • Maintenance- and lubrication-free
  • For temperatures up to 302° F
  • Corrosion resistant
  • Non-magnetic and washable
  • Chemical resistant
  • FDA compliant
  • Predictable lifetime
  • Lightweight
  • Electrically insulating
  • For 3-20 mm shaft diameter

    • plastic ball bearings
    Part No.:
    Balls:
    Part No. Rings Cage Balls Inner Ø
    d1     		Outer Ø
    d2     		Width
    b1     		Max.
    stat.
    axial
    load     		Stat.
    load
    capa
    city     		Dyn.
    load
    capa
    city     		Limit
    speed
    		Weight
            [mm] [mm] [mm] [lbs] [lbs] [lbs] [rpm] [g]
     B623A7G A500 PEEK Glass 3 10 4 9 6.75 9 5000 0.3 Upon request
     B626A7G A500 PEEK Glass 6 19 6 28.13 13.5 18.23 3200 1.6 Upon request
     B608A7G A500 PEEK Glass 8 22 7 49.5 16.2 21.82 2700 2.4 Upon request
     B6000A7G A500 PEEK Glass 10 26 8 85.5 22.95 30.82 2100 3.8 Upon request
     B6004A7G A500 PEEK Glass 20 42 12 146.25 56.25 78.75 1300 13.2 Upon request
    More about selected part:
    3D-CAD Sample request Experts PDF Quote request Price list myCatalog

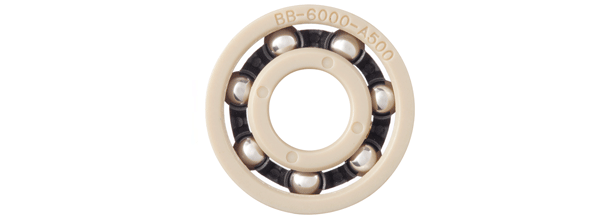

    xiros® A500 - economic alternative

    ball bearings

    xiros® A500 plastic ball bearings - in combination with a PA cage and stainless steel balls - are the economic alternative in the xiros® A500 range, when you don't have to worry about chemicals in your application.

  • Maintenance- and lubrication-free
  • For temperatures up to 302° F
  • Corrosion resistant
  • Non-magnetic and washable
  • Predictable lifetime
  • Lightweight
  • Electrically insulating

    • plastic ball bearings
    Part No.:
    Balls:
    Part No. Rings Cage Balls Inner Ø
    d1     		Outer Ø
    d2     		Width
    b1     		Max.
    stat.
    axial
    load     		Stat.
    load
    capa
    city     		Dyn.
    load
    capa
    city     		Limit
    speed
    		Weight
            [mm] [mm] [mm] [lbs] [lbs] [lbs] [rpm] [g]
     B608A1E A500 PA Stainless steel 8 22 7 49.5 16.2 21.82 2700 3.7 Upon request
     B623A1E A500 PA Stainless steel 3 10 4 9 6.75 9 5000 0.4 Upon request
     B626A1E A500 PA Stainless steel 6 19 6 28.13 13.5 18.23 3200 2.3 Upon request
     B6000A1E A500 PA Stainless steel 10 26 8 85.5 22.95 30.82 2100 6 Upon request
     B6004A1E A500 PA Stainless steel 20 42 12 146.25 56.25 78.75 1300 19.4 Upon request
    More about selected part:
    3D-CAD Sample request Experts PDF Quote request Price list myCatalog

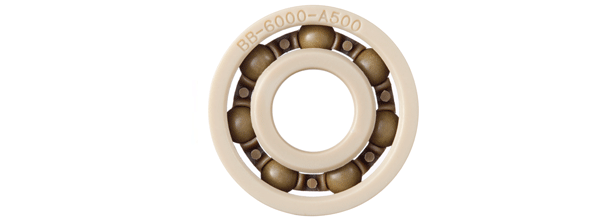

    xiros® A500 - highest wear resistance

    plastic bearing

    xiros® A500 plastic ball bearings are also available with plastic balls. This can improve wear resistance by a factor of 3 in an application involving low loads.

  • Maintenance- and lubrication-free
  • For temperatures up to 302° F
  • Corrosion resistant
  • Non-magnetic and washable
  • Chemical resistant
  • Predictable lifetime

    • xiros plastic ball bearing
    Part No.:
    Balls:
    Part No. Rings Cage Balls Inner Ø
    d1     		Outer Ø
    d2     		Width
    b1     		Max.
    stat.
    axial
    load     		Stat.
    load
    capa
    city     		Dyn.
    load
    capa
    city     		Limit
    speed
    		Weight
            [mm] [mm] [mm] [lbs] [lbs] [lbs] [rpm] [g]
     B626A7P A500 PEEK PAI 6 19 6 6.75 3.38 4.5 3200 1.4 Upon request
     B608A7P A500 PEEK PAI 8 22 7 12.38 4.05 5.63 2700 2.2 Upon request
     B6000A7P A500 PEEK PAI 10 26 8 21.38 5.63 7.65 2100 3.4 Upon request
     B6004A7P A500 PEEK PAI 20 42 12 36 13.95 19.8 1100 11.7 Upon request
    More about selected part:
    3D-CAD Sample request PDF Quote request Price list myCatalog
