drylin® T rail guides

The dimensions of the drylin® T rail guides are the same as the usual recirculating ball bearing guides. They are available in seven installation sizes - users have the choice between three different carriage options: with manually or automatically adjustable clearance or an extremely robust heavy-duty version. The sliding elements are secure within the carriage body, especially suited when pulling down from the rail. The drylin® T carriage guides can handle loads up to 14,000 N, have a service life of up to 50,000 km and are extremely dirt-resistant.

The drylin® T rail guide are identical with regard to connector and hole dimensions:

  • INA: KUVE -B • KWVE-B • KWE-B • KWSE / KUSE
  • Bosch Rexroth: FNS • FLS • SNS • SLSS • NH • SLH • FNN • SNN
  • THK: SHS-C/LC • HSR-A/LA • HSR-B/LB/BM
  • Hiwin: HGW-CC • QHW-CC • RGW-CC • RGW-HC
  • Rollon: MRS • MRS-L IKO: MRS • MRS-L
  • Rodriguez: BRH-A • BRH-AL • MSR-E • MSR-LE
  • Romani: HRC-FN

Grundet den globale forsyningssituation samt en aktuel stor ordretilgang, er vore leveringstider pt vejledende, og kan således ændres med kort varsel. Ved produktions- eller maskinstop er i velkomne til, at kontakte os for hurtigere levering:

Antal produkter: 22

drylin® T guide rail TS

Material: Aluminium, hard anodised


fra 38,52 EUR/m
8 produkter, hvoraf klar til afsendelse:
4 24 - 48 timer
4 3 - 4 arbejdsdage
Til produktsiden

drylin® T guide carriage TW-01

  • drylin® T linear carriage of the standard 01 series
  • With individual clearance adjustment
  • Long service life due to iglidur® J
  • Optionally configurable as floating bearing version in y or z direction
  • Material: aluminium housing, plastic lid, iglidur® J slider
fra 31,84 EUR/Stk.
12 produkter, hvoraf klar til afsendelse:
4 24 - 48 timer
8 3 - 4 arbejdsdage
Til produktsiden

drylin® T low-profile guide rail TS-04

Material: aluminium, hard-anodised

fra 26,73 EUR/m
8 produkter, hvoraf klar til afsendelse:
4 24 - 48 timer
Til produktsiden

drylin® T guide carriage TWA-01

  • drylin® T automatic linear carriage of the standard series 01
  • With automatic bearing clearance adjustment
  • Adjustment and cancellation of the pretension through the supplied pretension key
  • In operation, the bearing clearance automatically adjusts itself
  • Long service life due to iglidur® J
  • Material: aluminium housing, plastic lid, iglidur® J slider
fra 31,84 EUR/Stk.
12 produkter, hvoraf klar til afsendelse:
4 24 - 48 timer
8 3 - 4 arbejdsdage
Til produktsiden

drylin® T guide carriage TW-01-HKA

  • drylin® T linear carriage of the standard series 01
  • With fitted manual clamp
  • Individual clearance adjustment
  • Long service life due to iglidur® J
  • Optionally configurable as floating bearing version in y direction
  • Material: aluminium housing, plastic lid, iglidur® J slider
fra 44,08 EUR/Stk.
8 produkter, hvoraf klar til afsendelse:
8 3 - 4 arbejdsdage
Til produktsiden

drylin® T miniature guide carriage TW-04

  • drylin® T low profile linear carriage of the series 04
  • Robust type
  • Easy installation
  • Captive sliding elements
  • Preset bearing clearance
  • Optionally configurable as floating bearing version in the y and z direction
  • Material: Housing zinc die-casting
  • iglidur® J sliding element, mount: TW-04-07, TW-04-07-LLZ: iglidur® J200
fra 7,34 EUR/Stk.
14 produkter, hvoraf klar til afsendelse:
5 24 - 48 timer
6 3 - 4 arbejdsdage
Til produktsiden

drylin® T miniature guide carriage TWE-04

  • drylin® T adjustable low profile linear carriage of the series 04
  • Robust type
  • With manual clearance adjustment on the carriage
  • High corrosion resistance through cathodic dip coating
  • Material: Housing die cast zinc, iglidur® J slider
fra 16,50 EUR/Stk.
2 produkter, hvoraf klar til afsendelse:
2 24 - 48 timer
Til produktsiden

drylin® T guide carriage TW-12

  • New generation of high performance
  • Robust design
  • Captive bearing elements made from iglidur® J200
  • 50% longer service life in comparison to iglidur® J
  • Standard bearing alignment
  • Easy installation
  • Material: Aluminium housing, stainless steel lid, iglidur® J200 slider
fra 38,21 EUR/Stk.
12 produkter, hvoraf klar til afsendelse:
4 24 - 48 timer
Til produktsiden

drylin® T guide carriage TW-02

  • drylin® T linear carriage of the series 02 Heavy Duty
  • Robust design for extreme applications
  • Simple installation
  • Captive sliding pads
  • Preset bearing clearance
  • Material: Aluminium housing, stainless steel lid, iglidur® J2 slider
fra 28,97 EUR/Stk.
9 produkter, hvoraf klar til afsendelse:
3 24 - 48 timer
6 3 - 4 arbejdsdage
Til produktsiden

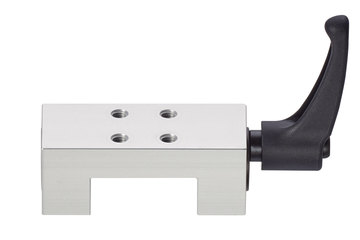

drylin® T manual clamping TWBM-01

Solid design with brass bottom clamp
fra 168,72 EUR/Stk.
1 produkter, hvoraf klar til afsendelse:
1 24 - 48 timer
Til produktsiden

drylin® T guide rail TS-CA

Material: Aluminium, clear anodised

fra 29,23 EUR/m
4 produkter, hvoraf klar til afsendelse:
4 10 arbejdsdage
Til produktsiden

drylin® T manual clamping TWBM-11

Compact design with plastic clamping elements
fra 97,87 EUR/Stk.
4 produkter, hvoraf klar til afsendelse:
4 24 - 48 timer
Til produktsiden
