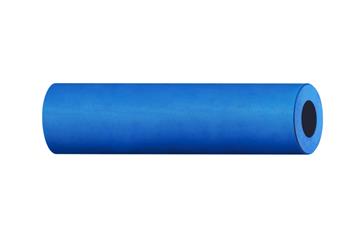

iglidur® A350, knife edge roller

  • Belt deflection 100% lubrication-free
  • Fulfils the fire prevention requirements of the Federal Aviation Administration of the USA (FAA) for aircraft interiors
  • Low drive power
  • The endurance runner at higher temperatures in the food sector
  • Tight deflection radii
  • Compliant with EC regulation 10/2011 EC
  • Long service life of the belt
  • FDA compliant
  • Long service life
  • For use with temperatures up to +180 °C

Er du usikker på, om delen passer?

Product description
iglidur® A350 | The endurance runner at higher temperatures in the food sector

  • Belt deflection 100% lubrication-free
  • Low drive power
  • Tight deflection radii
  • Compliant with EC regulation 10/2011 EC
  • FDA compliant
  • Fulfils the fire prevention requirements of the Federal Aviation Administration of the USA (FAA) for aircraft interiors
  • For use with temperatures up to +180 °C
  • Long service life
  • Lubrication and maintenance-free
  • Standard range from stock
igus® has developed its own knife-edge rollers to deflect conveyor belts in material handling applications. The iglidur® solution is characterised by tight radii and low driving power requirements. The iglidur® A350 knife edge rollers are made for practically all loads in the food and packaging industry. Even high loads are taken easily and the bearings work reliably without any external lubrication.

Typical application areas

Food industry
Beverage industry
Medical technology

You can find further applications here:
Industry solutions


When to use it?
  • When lubrication-free deflection of conveyor belts is required
  • When FDA compliance is required
  • When a precise guiding is required
  • If wear-resistance and FDA conformance is necessary at high loads
  • When a cost-effective and easy-to-install solution is required
  • If the bearing is used in acid environment
When not to use it?
  • When high belt speeds are necessary
  • When high forces are applied on the belts
  • When a static knife edge is required


Certifikater og standarder
RoHS compliant
According to 2011/65/EU (RoHS 2)
