Electric motors

igus® offers an extensive product range of electric motors. This portfolio is led by maintenance-free and durable hybrid stepper motors. Here in the online shop, they are available in various sizes and can be expanded to include encoders, brakes and gearboxes. Stepper motors are particularly suitable for applications with high torque at low speeds. The product range is extended by cost-effective and quiet DC motors. DC motors can be operated without complex external power electronics, namely via a battery, motor control system or a power supply unit. It is also characterised by a particularly space-saving design. As a result, the DC motors are no longer dependent on the motor flange and coupling. And last but not least, EC motors, also known as brushless DC motors, complete the range of electric motors. The BLDC motors cover a wide speed range and have very good efficiency. They are therefore well suited for applications with fast and powerful movements. Since the motor cannot be commissioned alone, igus® also offers motor control systems and other necessary components such as gearboxes and proximity switches.

Grundet den globale forsyningssituation samt en aktuel stor ordretilgang, er vore leveringstider pt vejledende, og kan således ændres med kort varsel. Ved produktions- eller maskinstop er i velkomne til, at kontakte os for hurtigere levering:

Antal produkter: 88

drylin® E lead screw stepper motor, stranded wires with JST connector and encoder, NEMA17

  • Installation size: NEMA17/flange dimension 42mm
  • Protection class: IP40
  • Holding torque: 0.50Nm
  • Nominal current: 1.80A
  • Motor connections: stranded wires with JST connector, encoder with JST connector
fra 97,47 EUR/Stk.
1 produkter, hvoraf klar til afsendelse:
1 24 - 48 timer
Til produktsiden

drylin® E lead screw stepper motor, stranded wires with JST connector and encoder, NEMA23

  • Installation size: NEMA23/flange dimension 56mm
  • Protection class: IP40
  • Holding torque: 2.00Nm
  • Nominal current: 4.20A
  • Motor connections: stranded wires with JST connector, encoder with JST connector
fra 120,02 EUR/Stk.
1 produkter, hvoraf klar til afsendelse:
1 24 - 48 timer
Til produktsiden

drylin® E lead screw stepper motor, stranded wires with JST connector and encoder, NEMA24

  • Installation size: NEMA24/flange dimension 60mm
  • Protection class: IP40
  • Holding torque: 3.50Nm
  • Nominal current: 4.20A
  • Motor connections: stranded wires with JST connector, encoder with JST connector
fra 123,72 EUR/Stk.
1 produkter, hvoraf klar til afsendelse:
1 24 - 48 timer
Til produktsiden

drylin® E stepper motor, stranded wires with Molex connector and encoder, NEMA34

  • Installation size: NEMA 34/flange dimension 86mm
  • Protection class: IP40
  • Holding torque: 5.90Nm
  • Nominal current: 6.40A
  • Motor connections: stranded wires with Molex connector, encoder with JST connector
fra 191,02 EUR/Stk.
1 produkter, hvoraf klar til afsendelse:
1 24 - 48 timer
Til produktsiden
Nyt

drylin® E EC/BLDC motor with stranded wires, Hall, encoder and brake, NEMA23

  • Installation size: NEMA23/flange dimension 56mm
  • Protection class: IP40
  • Rated torque: 0.60Nm
  • Nominal voltage: 48V DC
  • Motor connections: stranded wires, encoder with stranded wire, brake with stranded wire
  • Brake voltage: 24V
  • Integrated brake for vertical loads
fra 267,96 EUR/Stk.
1 produkter, hvoraf klar til afsendelse:
1 24 - 48 timer
Til produktsiden
Nyt

drylin® E EC/BLDC motor with stranded wires, Hall, encoder and brake, NEMA24

  • Installation size: NEMA24/flange dimension 60mm
  • Protection class: IP40
  • Rated torque: 0.80Nm
  • Nominal voltage: 48V DC
  • Motor connections: stranded wires, encoder with stranded wire, brake with stranded wire
  • Brake voltage: 24V
  • Integrated brake for vertical loads
fra 290,51 EUR/Stk.
1 produkter, hvoraf klar til afsendelse:
1 24 - 48 timer
Til produktsiden
Nyt

drylin® E EC/BLDC motor with stranded wires, Hall, encoder and brake, NEMA34

  • Installation size: NEMA34/flange dimension 86mm
  • Protection class: IP40
  • Rated torque: 1.00Nm
  • Nominal voltage: 48V DC
  • Motor connections: stranded wires, encoder with stranded wire, brake with stranded wire
  • Brake voltage: 24V
  • Integrated brake for vertical loads
fra 323,13 EUR/Stk.
1 produkter, hvoraf klar til afsendelse:
1 24 - 48 timer
Til produktsiden
Nyt

drylin® D7- (X) stepper motor output stage

  • Suitable for 28 - 42mm motor flange size (NEMA11-17)
  • Up to 3A peak current
  • 5-24V control & 24-48V load voltage
  • Operation mode 1: clock/direction
  • Operation mode 2: D7 & D7-1: jog mode; D7-2& D7-3: loop mode
  • Quiet operation & automatic tuning
fra 70,93 EUR/Stk.
1 produkter, hvoraf klar til afsendelse:
1 24 - 48 timer
Til produktsiden
Nyt

drylin® E EC/BLDC motor with stranded wires, Hall, encoder and brake, NEMA17

  • Installation size: NEMA17/flange dimension 42mm
  • Protection class: IP40
  • Rated torque: 0.30Nm
  • Nominal voltage: 48V DC
  • Motor connections: stranded wires, encoder with stranded wire, brake with stranded wire
  • Brake voltage: 24V
  • Integrated brake for vertical loads
fra 245,45 EUR/Stk.
1 produkter, hvoraf klar til afsendelse:
1 24 - 48 timer
Til produktsiden
Nyt

drylin® D8- (X) stepper motor output stage

  • Suitable for 56 - 60mm motor flange size (NEMA23-24)
  • Up to 5.5A peak current
  • 5-24V control & 24-48V load voltage
  • Operation mode 1: clock/direction
  • Operation mode 2: D7 & D7-1: jog mode; D7-2& D7-3: loop mode
  • Quiet operation & automatic tuning
fra 87,04 EUR/Stk.
1 produkter, hvoraf klar til afsendelse:
1 24 - 48 timer
Til produktsiden
Nyt

drylin® D9- (X) stepper motor output stage

  • Suitable for 86mm motor flange size (NEMA34)
  • Up to 9.8A peak current
  • 5-24V control & 24-48V load voltage
  • Operation mode 1: clock/direction
  • Operation mode 2: D7 & D7-1: jog mode; D7-2& D7-3: loop mode
  • Quiet operation & automatic tuning
fra 95,39 EUR/Stk.
1 produkter, hvoraf klar til afsendelse:
1 24 - 48 timer
Til produktsiden

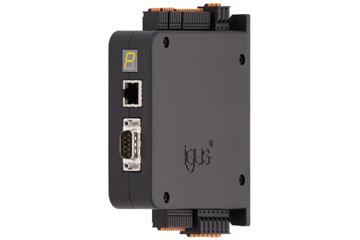

drylin® D1 motor control system for stepper, DC and EC/BLDC motors

  • A wide range of automation tasks by simple parameterisation, no programming necessary
  • For single axes, line, flat, linear and room linear robots and delta robots
  • No software installation or app required
  • Use with PC, tablet or smart phone
  • Stepper (ST), DC and EC/BLDC motors with up to 21A peak currents and 48V
  • Digital inputs/outputs, analogue inputs, CANopen, ModbusTCP (CANopen Gateway) for connection to master control systems such as Siemens or Beckhoff

    TEST BEFORE INVEST - Try out the motor control system with online simulation here before you buy
fra 378,84 EUR/Stk.
1 produkter, hvoraf klar til afsendelse:
1 24 - 48 timer
Til produktsiden

drylin® D2 motor control system for stepper, DC and EC/BLDC motors

  • A wide range of automation tasks by simple parameterisation, no programming necessary
  • For single axes, line, flat, linear and room linear robots and delta robots
  • No software installation or app required
  • Use with PC, tablet or smart phone
  • Stepper (ST), DC and EC/BLDC motors with up to 21A peak currents and 48V
  • Digital inputs/outputs, analogue inputs, CANopen, ModbusTCP (CANopen Gateway) for connection to master control systems such as Siemens or Beckhoff

The drylin® D1 motor control system and the D2 are identical except for the housing.
fra 363,62 EUR/Stk.
1 produkter, hvoraf klar til afsendelse:
1 24 - 48 timer
Til produktsiden

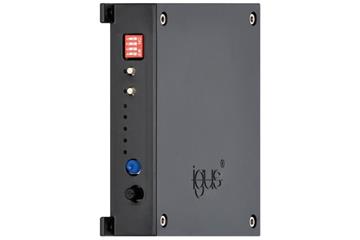

drylin® D3 for direct current motors

  • Simple automation directly using the control system without software and/or PC
  • Operation with limit switch or via power consumption
  • Left/right operation and speed control directly on the housing
  • Option for external switches/joysticks
  • Various modes of operation, such as tip operation and start to finish (semi-automatic)
  • Various adjustable acceleration ramps
  • Power supply via 24V/2.5A

    All relevant documents for dryve D3 can be found in the downloads.
fra 134,40 EUR/Stk.
1 produkter, hvoraf klar til afsendelse:
1 24 - 48 timer
Til produktsiden

drylin® D3-LM motor control system for DC motors with loop mode

  • Same dimensions as the standard D3
  • Extended functions for "Micro Automation"
  • Individually preprogrammed pendulum movements
  • Individually preprogrammed pause times between movements
På forespørgsel
