- Part number: QFI-0607-04
- Material: iglidur® Q

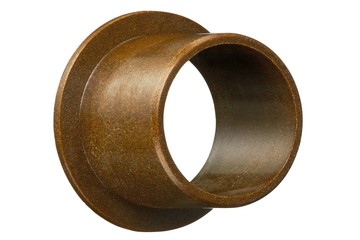

- Shape: Flanged bearings
- Dimensions:
- d1 0.375 inch
- d2 0.4688 inch
- d3 0.687 inch
- b1 0.25 inch
- b2 0.046 inch
- Adjust dimension
- Manufacturing method: Injection moulding
- Service life:
- Good wear resistance at room temperature
- Suitable for high speeds
- Excellent coefficient of friction
- Resistant to high loads (>60N/mm²)
iglidur® Q | For high loads - wear-resistant on many shafts
iglidur® Q was developed especially for extreme loads. Under high loads, iglidur® Q is one of the iglidur® materials with by far the best wear resistance. From a radial load of 25 MPa, even the highly abrasion-resistant iglidur® W300 is surpassed. Special solid lubricants distributed extremely finely in the material ensure that maintenance-free dry running is guaranteed under any load.
Typical areas of application
- Agricultural technology
- Construction machinery
- Traffic engineering
When do I use it?
- For swivel applications
- For very good abrasion resistance, especially under extreme loads
- For extreme p x v values
- If the material should be insensitive to dirt
When should I not use it?
- For use under water
- When temperatures are permanently higher than +135 °C
- If high edge loads or heavy impact loads occur
