iglidur® L250, flange bearing, mm

iglidur® L250 | For high speeds
iglidur® L250 is a plain bearing material for high speeds, fast sliding movements and low coefficients of friction. The iglidur® L250 material can highlight these advantages particularly with low loads. Applications featuring these advantages are fans, small motors, fast-running sensors or the magnet technology.

Typical applications

Automotive

Here are more applications:
Industry solutions


When to use it? For rotating applications at high speed When the highest service life is required For low load applications When a low noise level is required For very low coefficient of friction

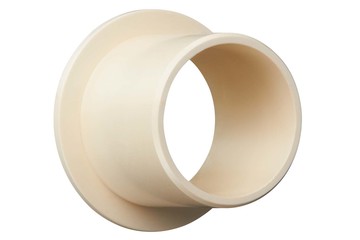

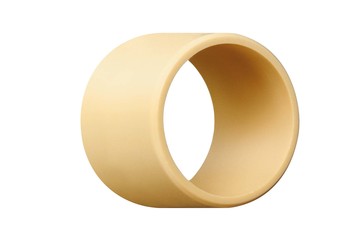

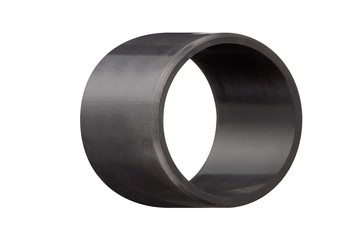

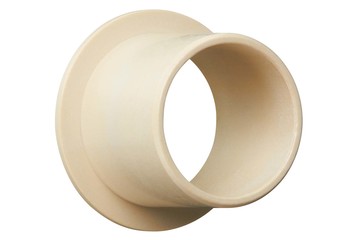

When not to use it? When high pressure loads occur iglidur® Q, sleeve bearing with flange, mm iglidur® W300, sleeve bearing with flange, mm When continuous operating temperatures are higher than +90°C iglidur® V400, sleeve bearing with flange, mm When low moisture absorption is required iglidur® H1, sleeve bearing with flange, mm iglidur® J, sleeve bearing with flange, mm

Use our filter options to find the suitable product

Tolerances and measuring system
The installation dimensions and tolerances of the iglidur® plain bearings depend on the material and wall thickness. For each material, the moisture absorption and the thermal expansion are decisive factors. Plain bearings with low moisture absorption can be installed with a smaller bearing clearance. The rule for wall thickness: the thicker the wall of the bearings, the larger the clearances must be.
Testing methods

Assembly
iglidur® plain bearings are press-fit bearings. The inner diameter is only adjusted to the appropriate tolerance after pressing into the housing hole. The press-fit excess dimension can be up to 2% of the inner diameter. This ensures the secure press-fitting of the bearings. Axial or radial movements in the housing are thus reliably avoided.
iglidur® - assembling, gluing, machining
