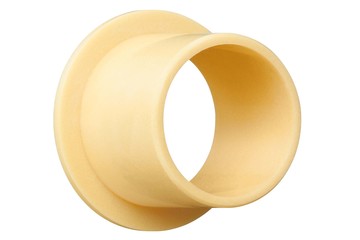

iglidur® J, sleeve bearing with flange, mm

  • Very good wear resistance at roomtemperature
  • Very good wear resistance at medium high temperatures
  • Extremely good coefficient of friction
  • Low humidity absorption
  • High media resistance
  • Resistant to edge pressures
  • Resistant to impacts/shock
  • Resistant to dirt and dust
  • Mold resistant acc. to DIN EN ISO 846
Product description
iglidur® J | The versatile endurance runner
One main advantage of iglidur® J plain bearings with flange is the combination of a low coefficient of friction when running dry and the low stick-slip tendency. With a maximum recommended surface pressure of 35 MPa, iglidur® J plain bearings are not suitable for extreme loads.

Typical application areas

Vending machinery
Printing industry
Beverage industry
Aviation
Cleanroom

You can find further applications here:
Industry solutions

When to use it?
  • For high speeds
  • For highest wear resistance at low to medium pressures
  • Low wear against different shafts
  • When a low coefficient of friction in dry operation is required
  • Vibration dampening
  • When good chemical resistance is required
  • Best performance with low-cost soft shaft materials
  • Low moisture absorption
When not to use it?
Use our filter options to find the suitable product

Tolerances and measurement system
The installation dimensions and tolerances of iglidur® plain bearings are a function of the material and wall thicknesses. For each material, the moisture absorption and the thermal expansion are decisive factors. Plain bearings with low moisture absorption can be designed with a minimal bearing clearance. The rule for wall thickness: the thicker the wall of the bearings, the larger the clearances must be.
Testing methods

Assembly
iglidur® plain bearings are press-fit bearings. The inner diameter adjusts only after press-fitting in the correctly toleranced housing. The press-fit excess dimension can be up to 2% of the inner diameter. This ensures the secure press-fitting of the bearing. Axial or radial movement in the housing are prevented this way.
iglidur® - assembling, gluing, machining

Certifikater og standarder
RoHS compliant
According to 2011/65/EU (RoHS 2)
