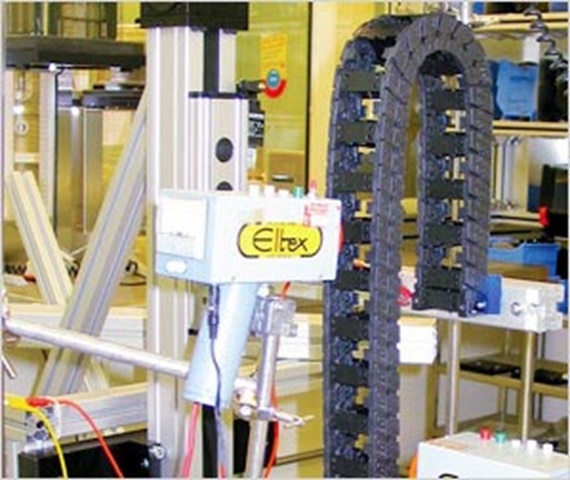

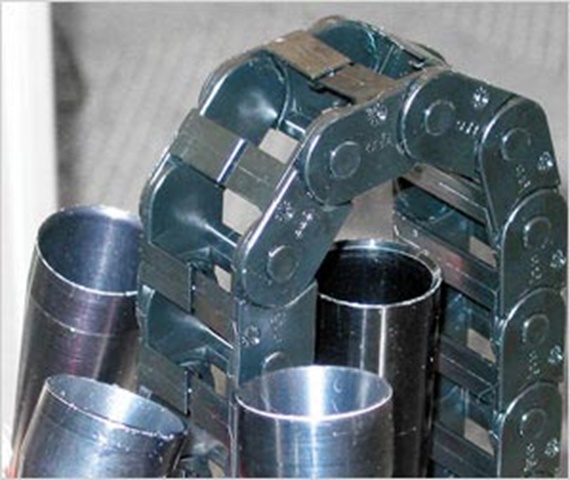

The already low abrasion of the e-chain® is yet again significantly reduced by the application of a special material. In many applications where cumbersome special solutions are used, a simple standard e-chain® can be used instead. An extensive test program has been completed for both gliding and unsupported applications. For many applications, the e-chain® made of special material can be operated practically free of abrasion. The IPA tests confirm that the standard e-chain® from igus® is sufficient for clean room requirements. "Tested and certified as very good!" e-chains® for clean room applications on the test stand Clean room environments demand very high wear resistance of moving parts. Thus for instance, e-chains® must be extremely wear resistant in order to fulfill the standard requirements of this sensitive environment. The Fraunhofer Institute for Production Technology and Automation (IPA) has tested the igus® E6 and E14 Series in the following way:
ISO Class 1, in accordance with DIN EN ISO 14644-1 for System E3, Series E3.15.040.075.0 at v = 0.5 m/s, 1 m/s, 2 m/s
ISO Class 1, in accordance with DIN EN ISO 14644-1 for System E6 - special material*, Series E6.29.060.150.0.CR
at v = 0.5 m/s, 1 m/s, 2 m/s
ISO Class 3, in accordance with DIN EN ISO 14644-1 for System E6 - standard material*, Series E6.29.060.150.0
at v = 0.5 m/s, 1 m/s, 2 m/s

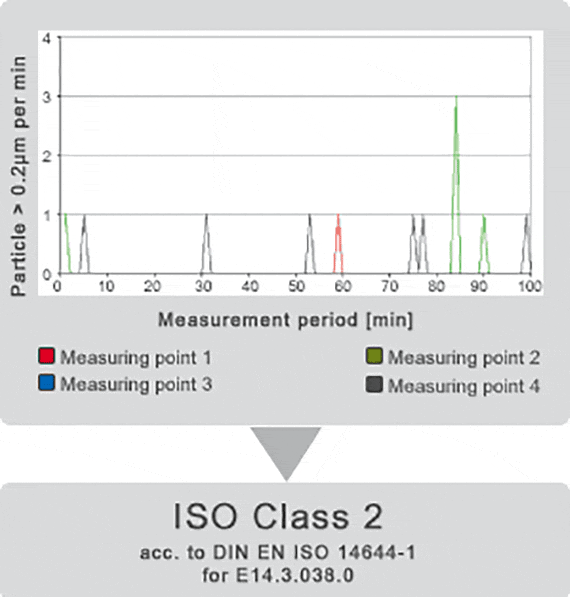

ISO Class 2, in accordance with DIN EN ISO 14644-1 for easy chain® Series E14.3.038 at v = 1 m/s
ISO Class 3, in accordance with DIN EN ISO 14644-1 for System E6, Series E6.29.050 at v = 1 m/s and 2 m/s
| Class per DIN
EN ISO 14644-1 |
Equivalent to
VDI 2083 |
Equivalent to
US Fed.Std. 209E |
Series
classification |
Speed
[m/s] |
|---|---|---|---|---|
| ISO class 1 | no comparable classification | no comparable classification | E3.15.040.075.0 | 0,5 / 1,0 / 2,0 |
| ISO class 1 | no comparable classification | no comparable classification | E6.29.060.150.0.CR* | 0,5 / 2,0 |
| ISO class 2 | no comparable classification | no comparable classification | E14.3.038.0 | 1,0 |
| ISO class 3 | class 1 | class 1 | E6.29.060.150.0 | 0,5 / 1,0 / 2,0 |
| ISO class 4 | class 2 | class 10 | ||
| ISO class 5 | class 3 | class 100 | ||
| ISO class 6 | class 4 | class 1.000 | ||
| ISO class 7 | class 5 | class 10.000 | ||
| ISO class 8 | class 6 | class 100.000 |
Fraunhofer
Institut
Production technology
and automation
