Assembly Instructions for e-chain® triflex® R - TRE

Joining: TRE.30 - TRE.40 - TRE.60 - TRE.70 - TRE.85 - TRE.100

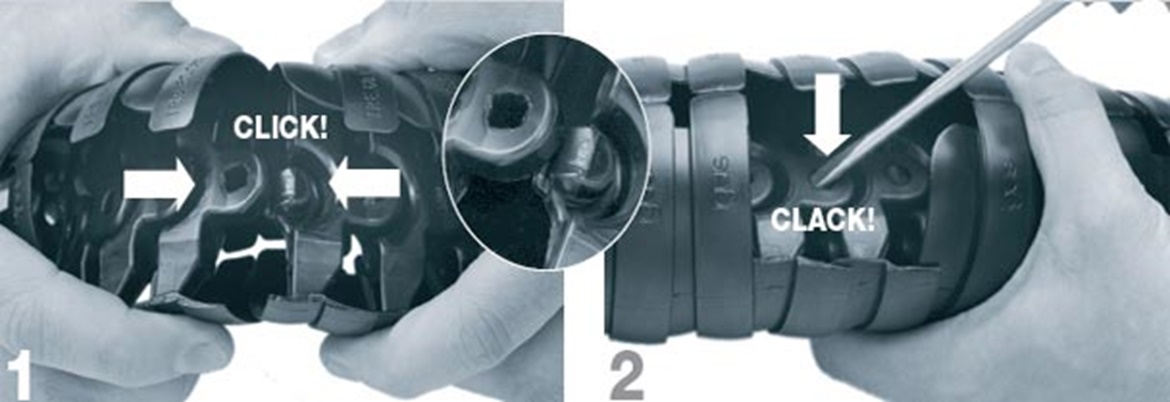

Assembly Instructions for triflex® R TRE Hold two pieces together at inner radius and move socket up against the ball´s wedged end. Push until a klicking sound indicates a secure fit of socket onto the ball.

(chain section exposed for the purpose of demonstration)

Detaching: TRE.70 - TRE.85 - TRE-100

Assembly Instructions for triflex® R TRE Insert screw driver into the opening of the socket from the top. Then twist apart, counter-clockwise.

Detaching: TRE.30 - TRE.40 - TRE.60

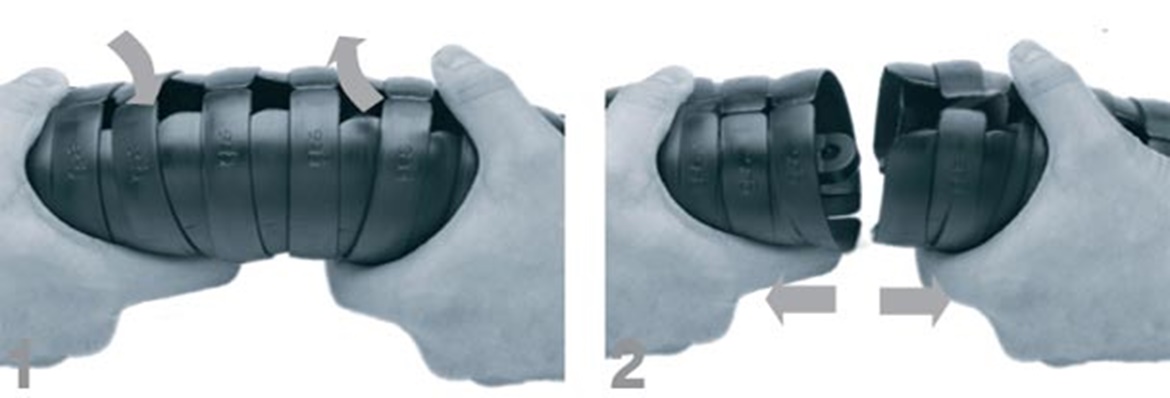

Assembly Instructions for triflex® R TRE Bend triflex® into its radius and twist apart, counter-clockwise

Filling: TRE.30 - TRE.40 - TRE.60 - TRE.70 - TRE.85 - TRE.100

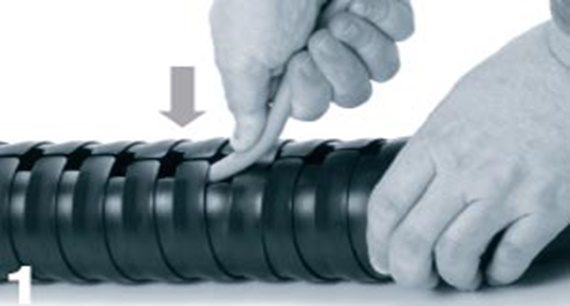

Triflex TRE Assembly Easy to fill - simply press cable in...

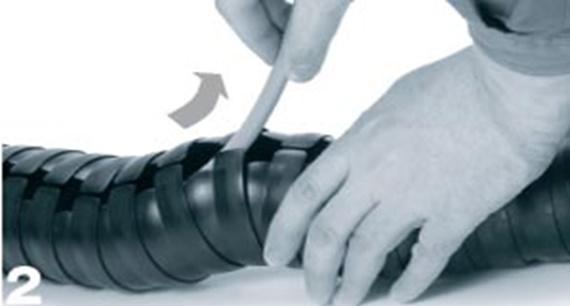

Triflex TRE Assembly ...and easy to take the cables out
