drylin® W and drylin® T profile rails

Variety or simple one to one replacement

With drylin® T, you can rely on a tried-and-tested linear system that has identical dimensions to conventional recirculating ball bearing systems. This makes a one to one replacement very easy. drylin® W provides you with the greatest possible flexibility and variety in the design of your profile rails. Optimum load distribution is a further argument in drylin® W.

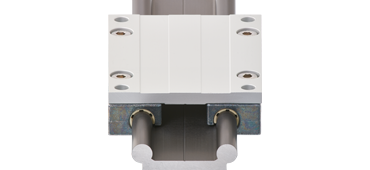

drylin® W profile guides

Flexible arrangements with a large number of carriages, rails and plain bearings
Optimum load distribution
Carriages in various widths and lengths
Curved rails available
Quick assembly

» More information on drylin® W

Purchase drylin® W here

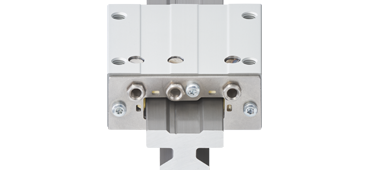

drylin® T rail guides

One-to-one alternative recirculating ball bearing systems
Identical connector and hole dimensions
Robust carriages with high static load capacity
Optionally with/without adjustable bearing clearance
Automatic clearance adjustment optional

» More information on drylin® T

Purchase drylin® T here

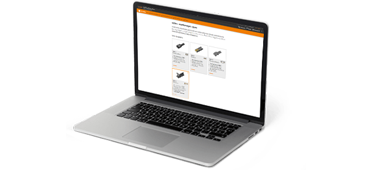

Configure in 5 steps

Individual linear system
Quick and easy configuration
Calculate the service life
Obtain CAD drawing
Order or submit an enquiry online
Obtain further information

To the configurator

Robust
drylin® linear guides can cope with high temperatures, strong vibrations and more

Resistant to dirt
drylin® linear guides can be deployed even in applications involving sand, chips, swarf and dust

Corrosion-free
Corrosion-free and media-resistant for deployment under water

Lightweight
Up to 75% lighter thanks to high-performance polymers

Quiet
Around 4 times quieter than equivalent linear bearings made of metal

Hygienic
All systems operate without external lubrication and are thus extremely clean

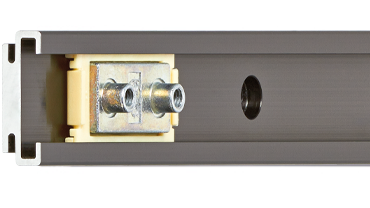

Low-profile guide systems for small installation spaces

The drylin® N low-profile guide system is a linear system for small installation spaces.
The small installation heights of 6 to 12 mm are especially space-saving.
The combination of plastic and anodised aluminium is especially lightweight in addition.

To drylin® N low-profile guide system

More information on the drylin® linear system

News 2020

All new igus® products for 2020 in one catalogue.

igus® News 2020

Tested!

More than 500 experiments per year in the 250 m² large test laboratory.

Lineær teknologi testlaboratorium

Selected linear system application examples

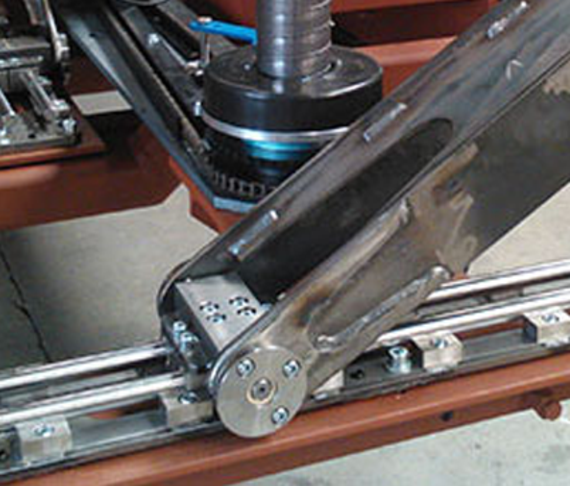

drylin® W linear guide in stage technology

Stage lifting device with drylin® W

In the field of stage technology, quiet and low vibration movements are of critical importance. When moving the stage, high forces are exerted on the guide and the bearing points.
The drylin® W linear guides based on steel shafts in combination with stainless steel pillow blocks that permit quiet and low vibration movement.

Freed from dirt and dust

The mobile sawmill of Serra Maschinenbau GmbH has to work perfectly, be easy to operate and be easy to look after and maintain whatever the weather. drylin® linear technology is dirt-resistant.

Labelling - without rust

In the food and beverages industry in particular, special hygiene requirements have to be met. Machines and components must be corrosion-free as in the case of this labelling machine.

Labelling machine with drylin® W profile rail
