drylin® R linear shaft accessories

Shaft end supports

Fixed and movable with through hole
Light aluminium
From 8 to 40mm diameter from stock
Available in 24 hours

Buy shaft end supports here

Shaft end blocks

Available with and without a flange
Light aluminium
Various designs in stock
Available in 24 hours

Buy shaft end blocks here

The drylin® shaft brochure

Contains all information on shafts from igus
Available for download, free of charge
Perfect reference work and ordering aid
New in 2020

Download the shaft brochure

Configure a linear shaft in three steps

The linear shaft configurator enables you to configure your own linear shafts in minutes.

The price is shown at each step
Dimension drawing can be exported free of charge as CAD, STEP or PDF
Have it delivered easily to your workplace.

Go to the configurator

drylin® R pillow block with aluminium housing

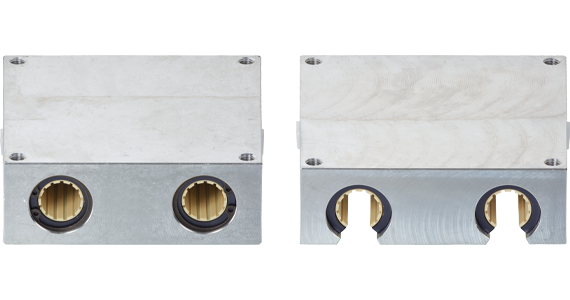

drylin® R quad block

For linear shafts that are supported and not supported

For linear shafts that are mounted parallel
Aluminium housing
Also self-aligning
With four drylin® R linear plain bearings
Optional with further liners
Mounting of the bearings in the housing with a circlip according to DIN 472

Buy quad block

Compensate for parallelism errors with floating bearings

Design rules for drylin® R

The floating bearings offer great advantages in applications with parallel linear shafts. Due to the geometry of the spherical plain bearing adapters, misalignments and parallelism errors are compensated. Therefore, a hard anodisation protects the aluminium adapter from wear.

drylin® R - Designtips

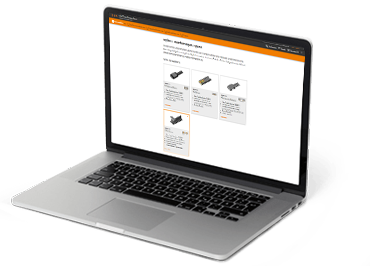

drylin® R complete system configured in 5 steps

With the drylin® linear guides expert, you can configure an individual drylin® R linear guide with linear shafts, linear carriages and linear housing bearings to suit your application and, at the same time, calculate its service life.

Configure linear shaft system
