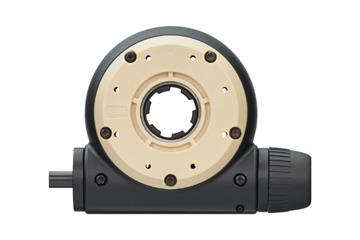

drygear® Apiro | Gearbox with hollow shaft

The standard version among Apiro gearboxes: the worm gear with hollow shaft enables flexible drive connections.

Product information

available transmissions 4:1, 32:1, 64:1
Output torque 2.5Nm

Optionally available

more transmissions
various fasteners

fra 106,82 EUR/Stk.

3 produkter, hvoraf klar til afsendelse:

[0} 24 - 48 timer

[0} 48 - 72 timer

Til produktsiden

Nyt

Bevel gear units are used wherever motion and forces have to be transmitted at right angles. With a 1:1 transmission ratio, the transmitted torques can be transferred almost without loss.

1:1 transmission ratio
Splash-proof
Ini-kit available for all variants

fra 311,19 EUR/Stk.

2 produkter, hvoraf klar til afsendelse:

[0} 48 - 72 timer

Til produktsiden

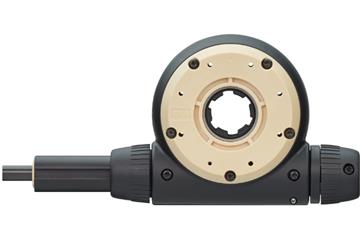

The gearbox and the direct multi-function profile can be used, among other things, to implement series connections of gearboxes.

Product information

available transmissions 4:1, 32:1, 64:1
Output torque 2.5Nm

Optionally available

more transmissions
various fasteners

fra 116,76 EUR/Stk.

3 produkter, hvoraf klar til afsendelse:

[0} 48 - 72 timer

Til produktsiden

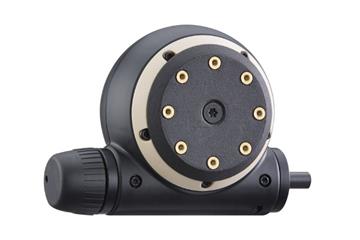

drygear® Apiro | Gearbox with rotary disc

This gearbox from the Apiro modular gearbox system is particularly suitable for slewing ring applications, as it can, among other things, be used as an external rotary axis.

Product information

available transmissions 4:1, 32:1, 64:1
Output torque 2.5Nm

Optionally available

more transmissions
various fasteners

fra 159,74 EUR/Stk.

3 produkter, hvoraf klar til afsendelse:

[0} 48 - 72 timer

Til produktsiden

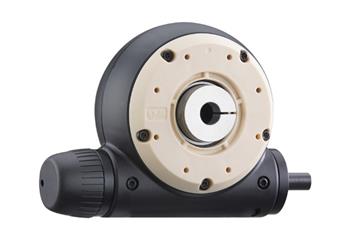

The version with couplings on the output allows the attachment of various shafts with a maximum diameter of 12 millimetres.

Product information

available transmissions 4:1, 32:1, 64:1
Coupling diameter 8mm

Optionally available

more transmissions
various fasteners

fra 119,63 EUR/Stk.

3 produkter, hvoraf klar til afsendelse:

[0} 48 - 72 timer

Til produktsiden

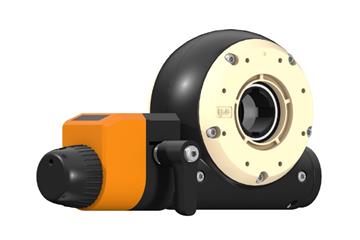

drygear® Apiro | Gearbox with manual clamp and position indicator

The complete Apiro gear unit including manual clamp and position indicator is ideal for manual adjustments and fixings.

Product information

available transmissions 4:1, 32:1, 64:1
Accessories can be pivoted in four positions:0°, 90°, 180°, 270°

Optionally available

more transmissions
various fasteners

fra 205,68 EUR/Stk.

3 produkter, hvoraf klar til afsendelse:

[0} 48 - 72 timer

Til produktsiden

drygear® Apiro | Gearbox with output coupling

The standard version among Apiro gearboxes: the worm gear with drive coupling enables a direct connection. The gearbox with an output shaft enables a direct connection to the output and is ideally suited for connection to drylin drive technology.

Product information

available transmissions 4:1, 32:1, 64:1
Output shaft diameter: 8mm

Optionally available
