Telescopic rail with prism preload

Telescopic rail, preloaded

Telescopic rail with prism preload

The defined pre-tension is the heart of the drylin® N prism guide. And we now also use this pre-tensioning mechanism with selectable constant displacement forces in the new prismatic telescopic rail. The result is a rich, clearance-free telescoping feel, without annoying rattling noises. Due to the narrow design, the telescopic rail is also suitable for small installation spaces.

Make an enquiry about this product

Tech up with igus news

Tech up

Rattle-free telescopic rail due to spring pre-tensioning mechanism
Constant drive forces with various preload options
With 27mm width very narrow type for 27mm groove
Quiet, with rattle-free spring suspensions

Cost down with igus news

Cost down

Ready-to-install solution with extension lengths from 150-500mm
Configurable in steps of 50mm as full-extension, partial-extension or over-extension runner
100% maintenance-free as no lubricants required
Can be ordered online from 1 piece

evidence from igus news

Proof

Tested: linear up to four times quieter than metal bearings
Tested: corrosion resistance, salt-spray tested (NSS) according to DIN EN 9227/ASTM B-117

recycling with igus news

Sustainability

100% lubrication-free and maintenance-free operation
Very quiet through sliding motion instead of metal balls
No contamination in the application environment

Ask our experts

Contact igus expert

Our igus® expert will gladly advise you in this regard with no strings attached.

Contact us here

Download current catalogue

News HMI 2020

Easily download the PDF with a mouse click and learn about igus® innovations.

Go to the PDF downloads

Further drylin® products

shopping icon

Discover a variety of products and solutions for your problems in our online shop.

Go to the other products

Application examples of our drylin® products

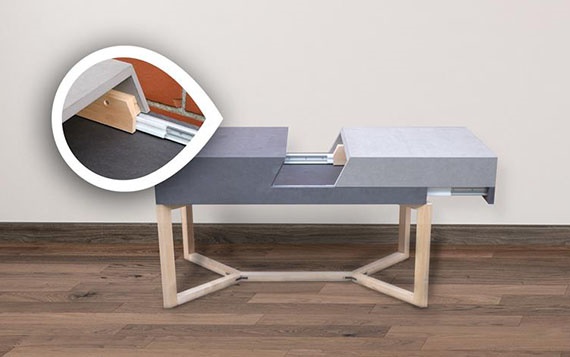

Carpentry project Cologne Chamber of Trade

igus® helps prospective carpenters with their project

As part of a course in machinery at the Cologne Chamber of Trade, prospective carpenters combined Scandinavian looks with industrial design. The results of this project are a pull-out bedside table and a coffee table with rotating drawer and pull-out opening. The pieces of furniture are not only beautiful to look at, but have a certain quality.

To the application example

igus blister centre

igus® in the storage technology of a blister centre

igus® bearing technology in an automated blister centre. Automated medicine handling for chemist shops/pharmacies: with over 7,500 systems installed worldwide, Rowa Systems from Becton Dickinson is a clear leader in this market segment.

To the application example

igus labelling machine

igus® components in KHS labelling machines

Numerous rotary and linear bearings from the igus® product range are not the only ones installed in KHS GmbH's labelling machines. igus® also supplies complete, ready-to-install modules such as adjustment systems and guide rollers, etc.

To the application example

fabmaker educational printer

Linear guide components for 3D printers

Technology-oriented startup businesses are more daring than others in deploying emerging technologies in new, marketable products. This is also true of fabmaker GmbH, Braunschweig, which has developed a 3D printer for educational purposes.

To the application example
